Radio Panel
PRD-225 VHF COM Radio Panel
Handcrafted standalone COM radio panel with live MSFS frequency sync, nearest airport browser, and high-contrast OLED display.
PRD-225
VHF COM Radio Panel
Handcrafted hardware COM radio with 256×64 OLED display, dual-concentric tuning encoder, 10 buttons, nearest airport browser, and live MSFS 2024 frequency sync. Includes SimLinkHub companion software for Windows.
256×64 OLED
MSFS 2024
25/8.33 kHz
SimLinkHub included
TBC + shipping
Core Board
PRD-NODE Universal CAN Peripheral Node
The universal building block. Works as a peripheral node (with breakout boards) or as a CAN-USB bridge — same board, two population variants.
PRD-NODE v1.0
Universal CAN Peripheral Node
STM32F072RBT6, 500kbps CAN, 30-pin headers, SPI2 port, 3 power rails, 80×30mm 4-layer PCB. Fully assembled and tested. Configure as peripheral node or bridge via population variant.
TBC + shipping
📦
Starter kit
Kit
PRD-NODE Starter Kit
Two PRD-NODE boards (one peripheral, one bridge-configured) plus PRD-BO-TRIMFLAPS breakout board. Everything to get a trim wheel and flaps lever running immediately.
TBC + shipping
Breakout Boards
PRD-BO Breakout Board Family
Fully passive breakout boards that plug onto the PRD-NODE's 2×15 pin headers. Each maps to a real instrument or control group — no signal-type guesswork needed.
In Design

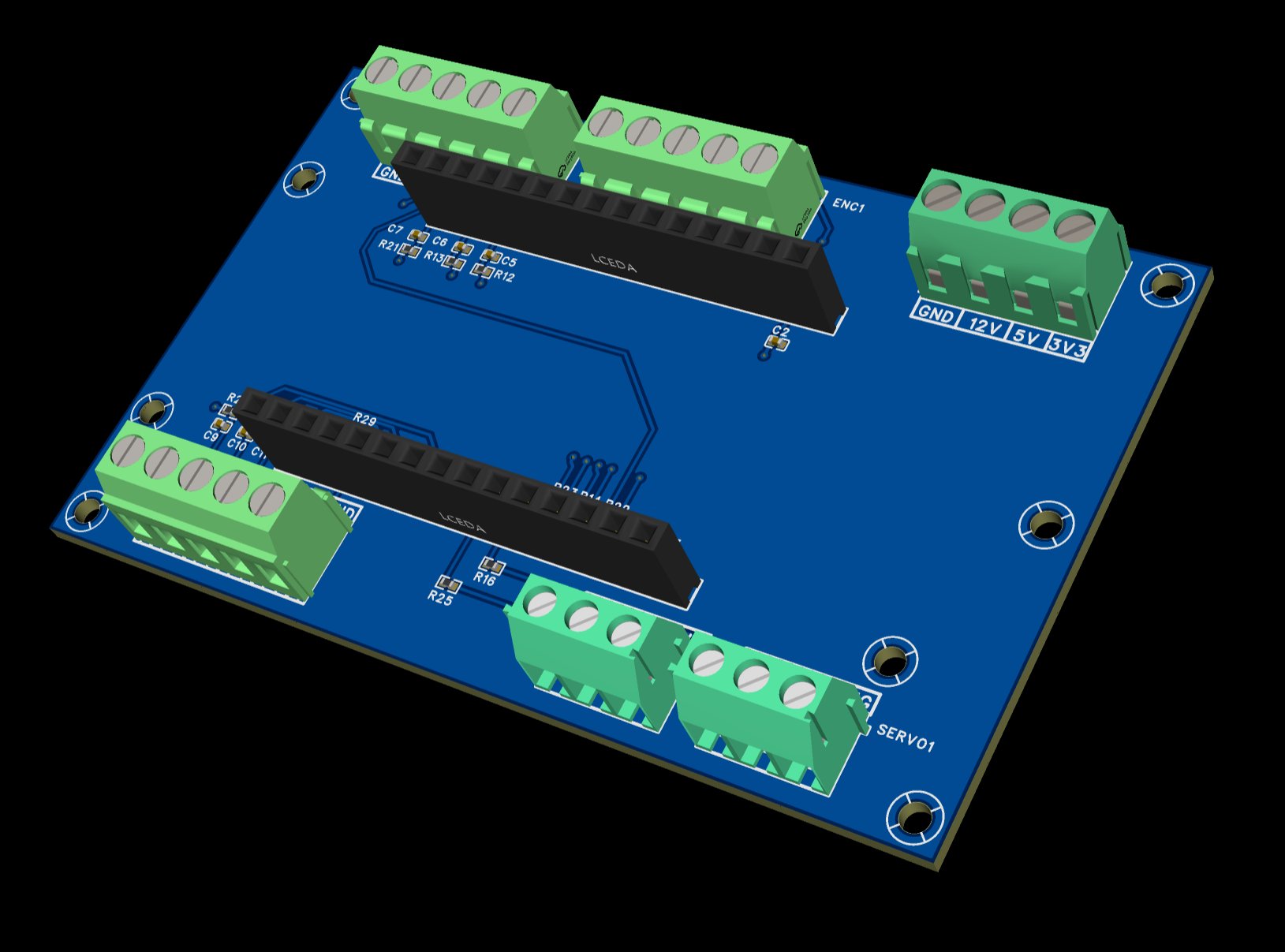

Trim & Flaps Breakout
2× encoder inputs with push buttons (trim wheel), 4× switch inputs (flaps lever positions), 2× servo outputs (position indicators). Debounce passives fitted. 3.5mm pluggable screw terminals.
TBC
🎚️
PRD-BO-AXES
Coming Soon
Analog Axes Breakout
4× analog inputs (3-pin VCC/SIG/GND) for potentiometers and hall effect sensors. Covers throttle, mixture, prop, rudder, and yoke axes.
TBC
🔘
PRD-BO-SWITCHES
Coming Soon
Switch & Button Breakout
10× digital inputs with 10kΩ pullups and 100nF debounce caps fitted. Covers yoke buttons (10), switch panels, autopilot buttons, and radio panel buttons (9).
TBC
📻
PRD-BO-RADIO
Coming Soon
Radio Panel Breakout
2× encoder inputs with push buttons, volume pot input, digital button inputs, and SPI2 display header breakout. Build a NODE-based COM/NAV radio panel with SSD1322 or SSD1306 OLED.
TBC
⚙️
PRD-BO-SERVO
Coming Soon
Servo Output Breakout
3× servo outputs (3-pin GND/5V/SIG) with 100Ω series protection resistors. For gauge indicators — airspeed, VSI, heading bug, or any servo-driven pointer.
TBC
Place an order
Enquire to Order
We're currently taking pre-orders and enquiries. Fill in the form below and we'll get back to you with availability and pricing.
Why enquire first?
We're a small specialist operation and we want to make sure you get exactly what you need for your build.
- Confirm stock availability and lead times
- Advise on which breakout boards suit your devices
- Answer firmware and wiring questions before you commit
- Arrange shipping to your location
Typical response time
We aim to respond to all enquiries within 24 hours.
